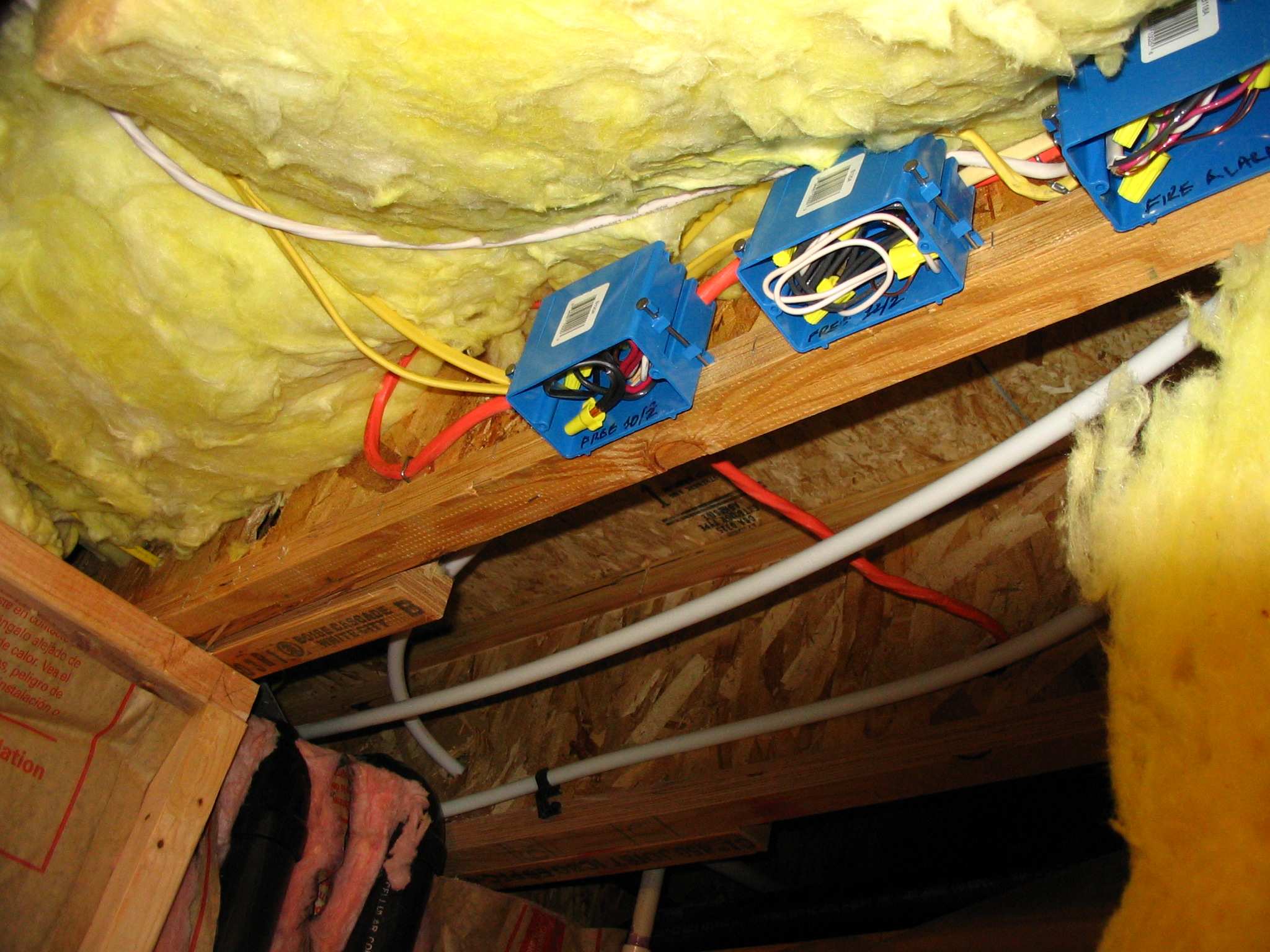

In the following pictures, electricity can be seen that goes out to the garage for various reasons: (storage5.jpg)
- Spare 220v circuit (in box on garage side of laundry wall).
- Power to central vacuum cleaner.
- Power to garage attic and Christmas light circuits (switch by laundry room door).
- Smoke detector circuit to link family room and den to rest of house.

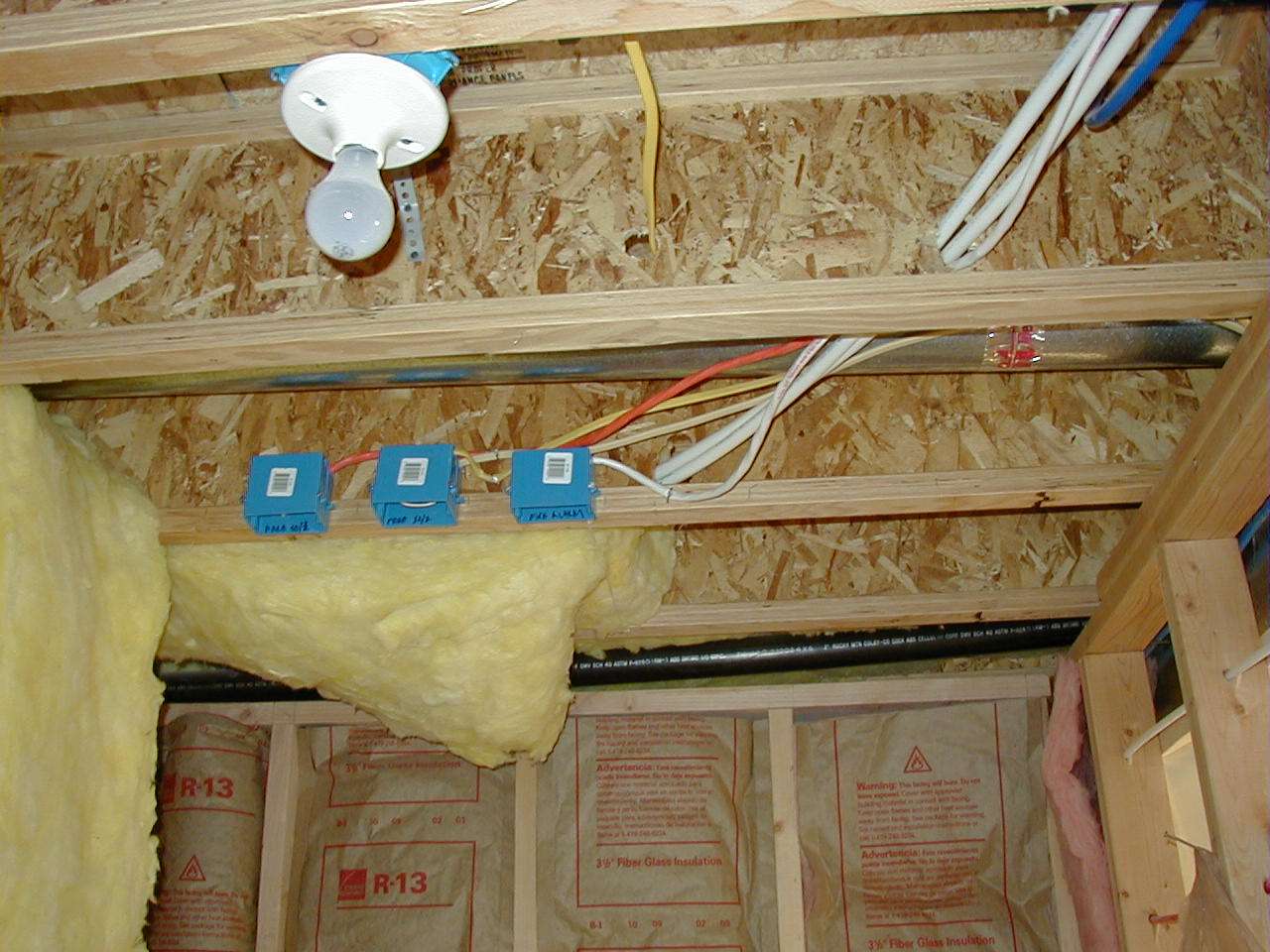

Second, conduits for the central vacuum are seen as they exit into the garage. In addition, the low-voltage switch circuit that turns the central vacuum on and off is seen. (storage6.jpg)

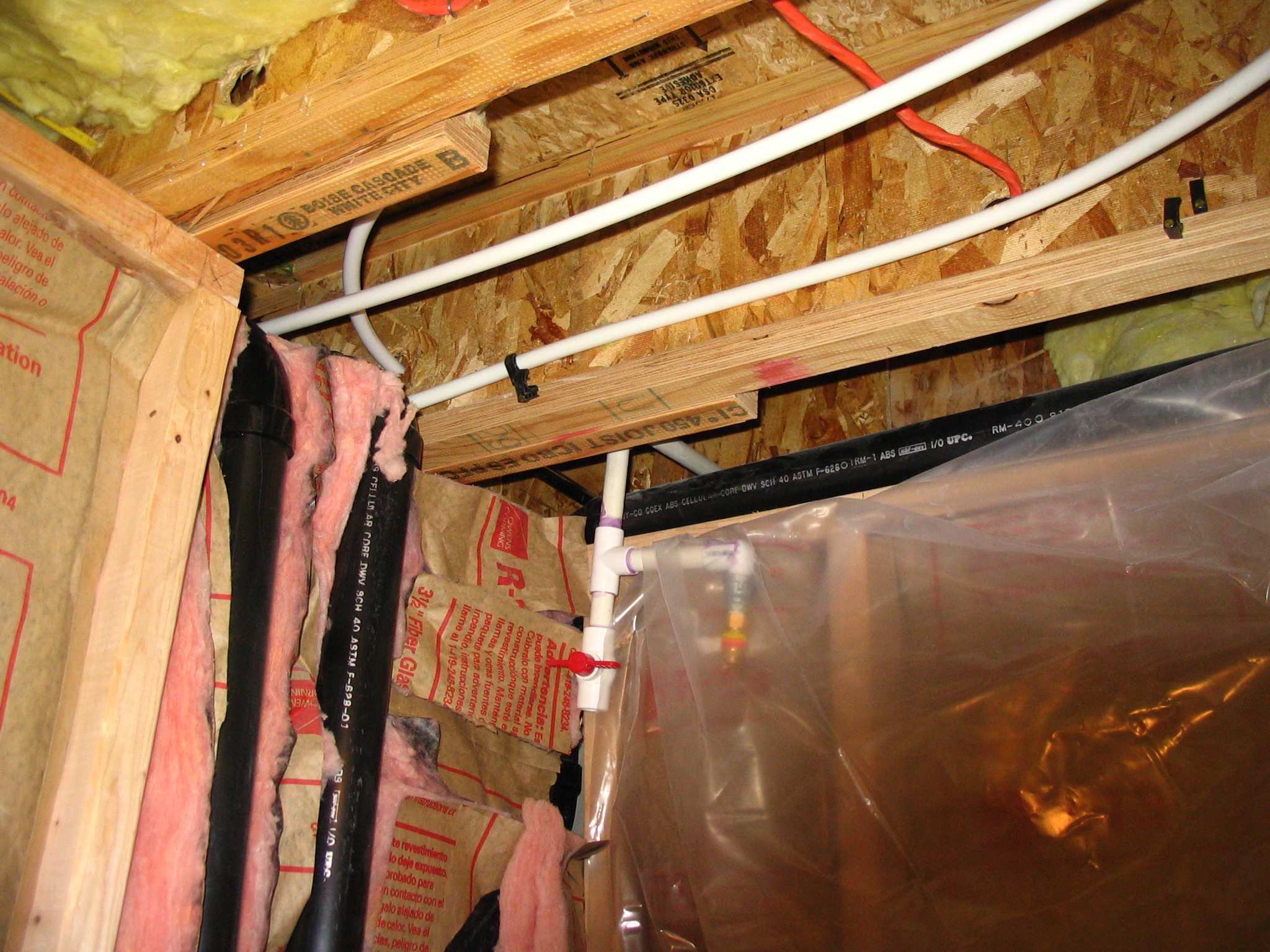

Third, a pressurized air conduit comes in from the workshop so that it is not necessary to drag the air compressor downstairs for any project. The ball valve is for draining water from the system. (storage3.jpg and storage6.jpg)

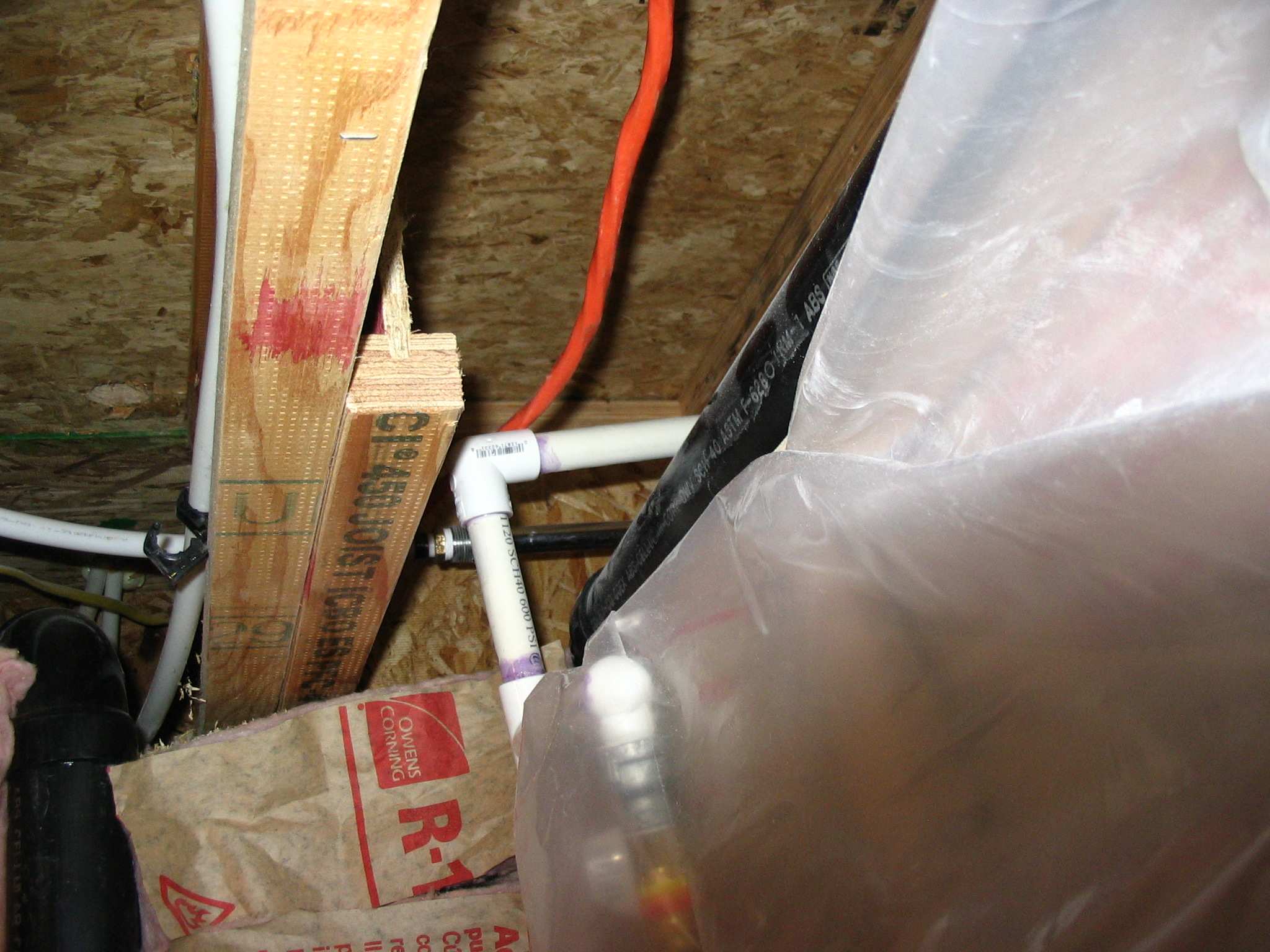

Last, a ½-inch PEX tube feeds soft water to the garage for hosing down the floor, washing cars, etc. (storage4.jpg)
|
|
|
|
|
|
|

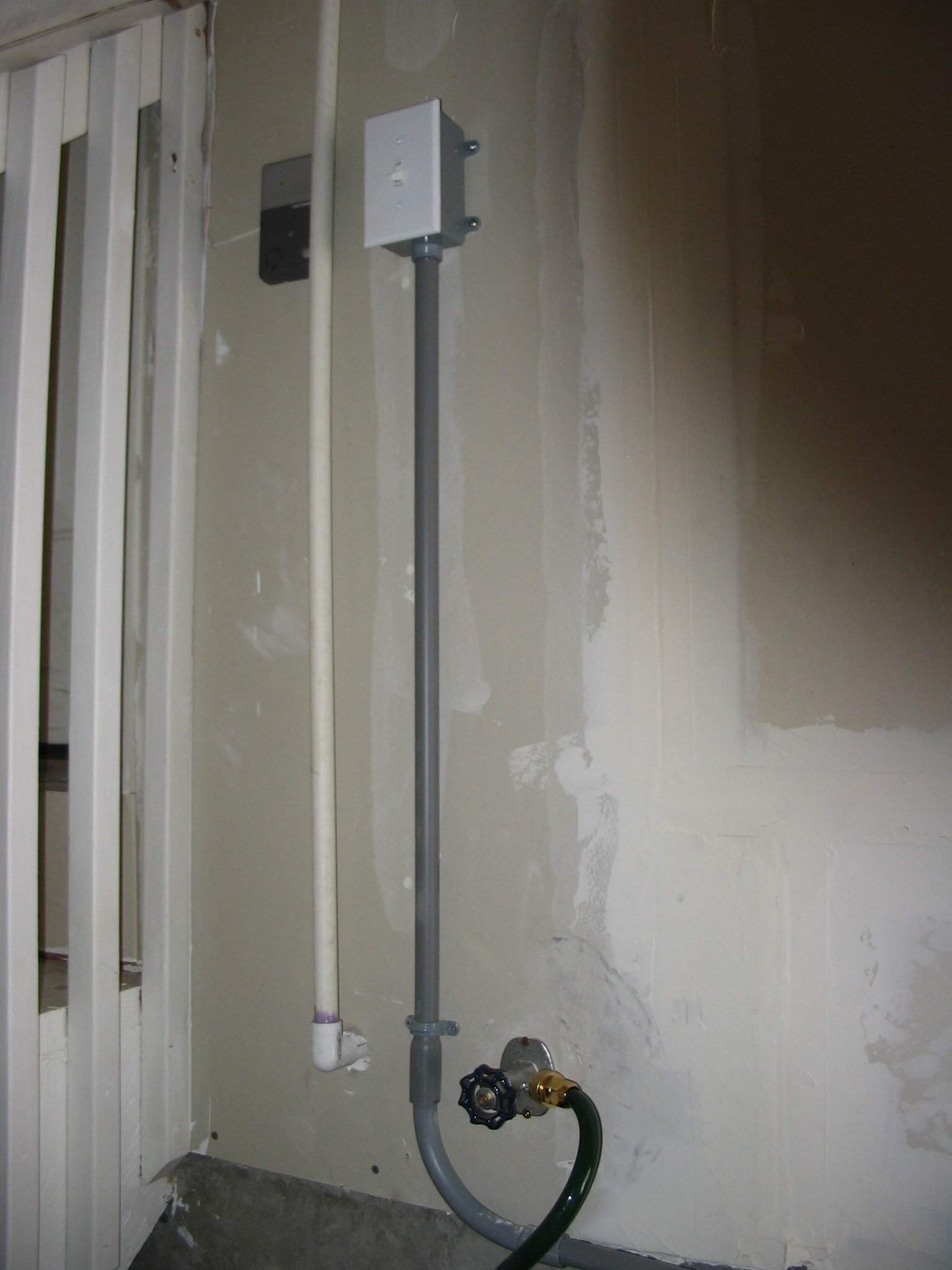

In the garage by the laundry room door and stairs, note, from left to right, the following details:
- Garage door opener switch.
- Pressurized air.
- Christmas light and garage attic circuit switch.
- Soft water hose bib.
These come from or go to the storage room.
|

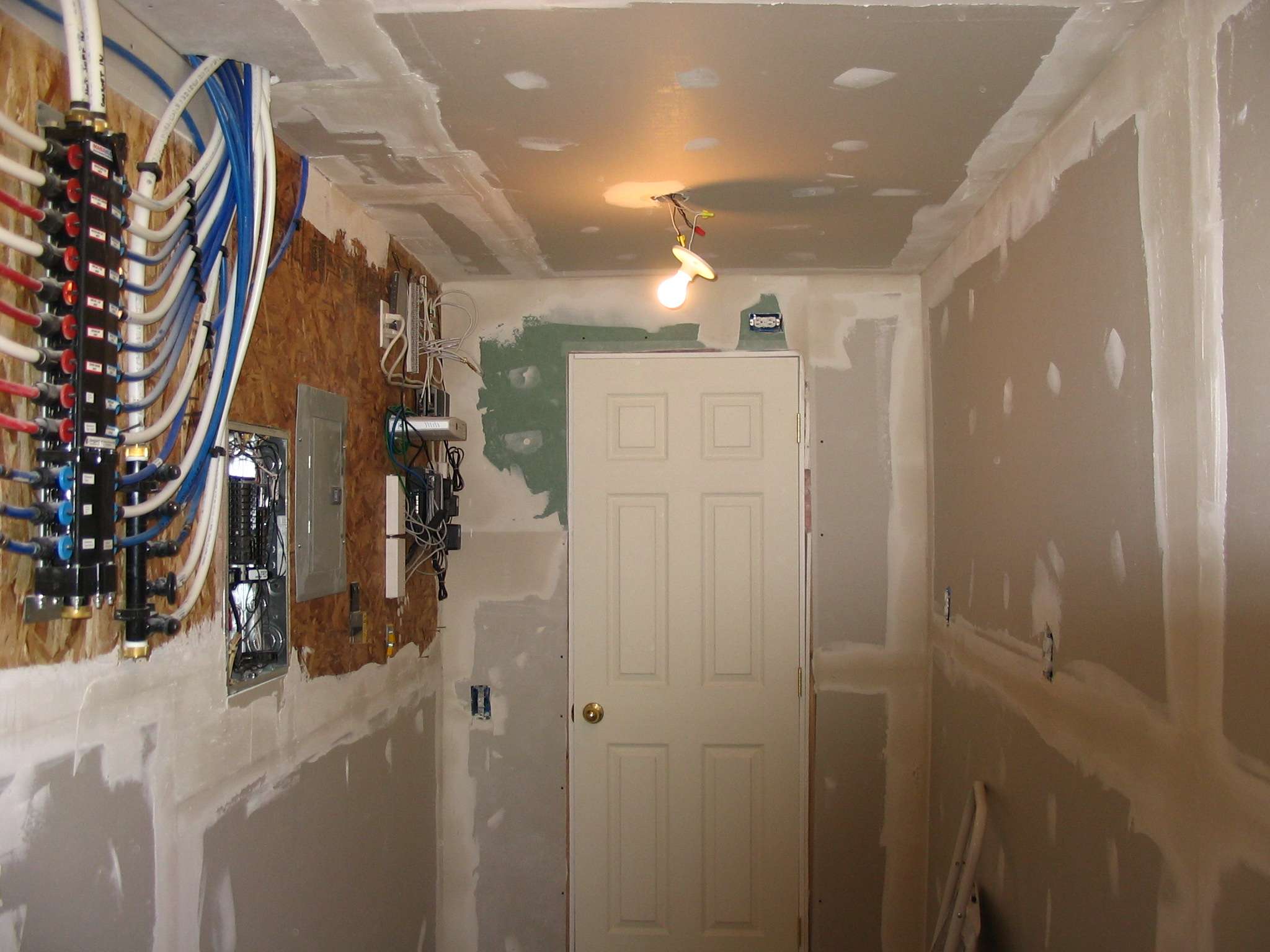

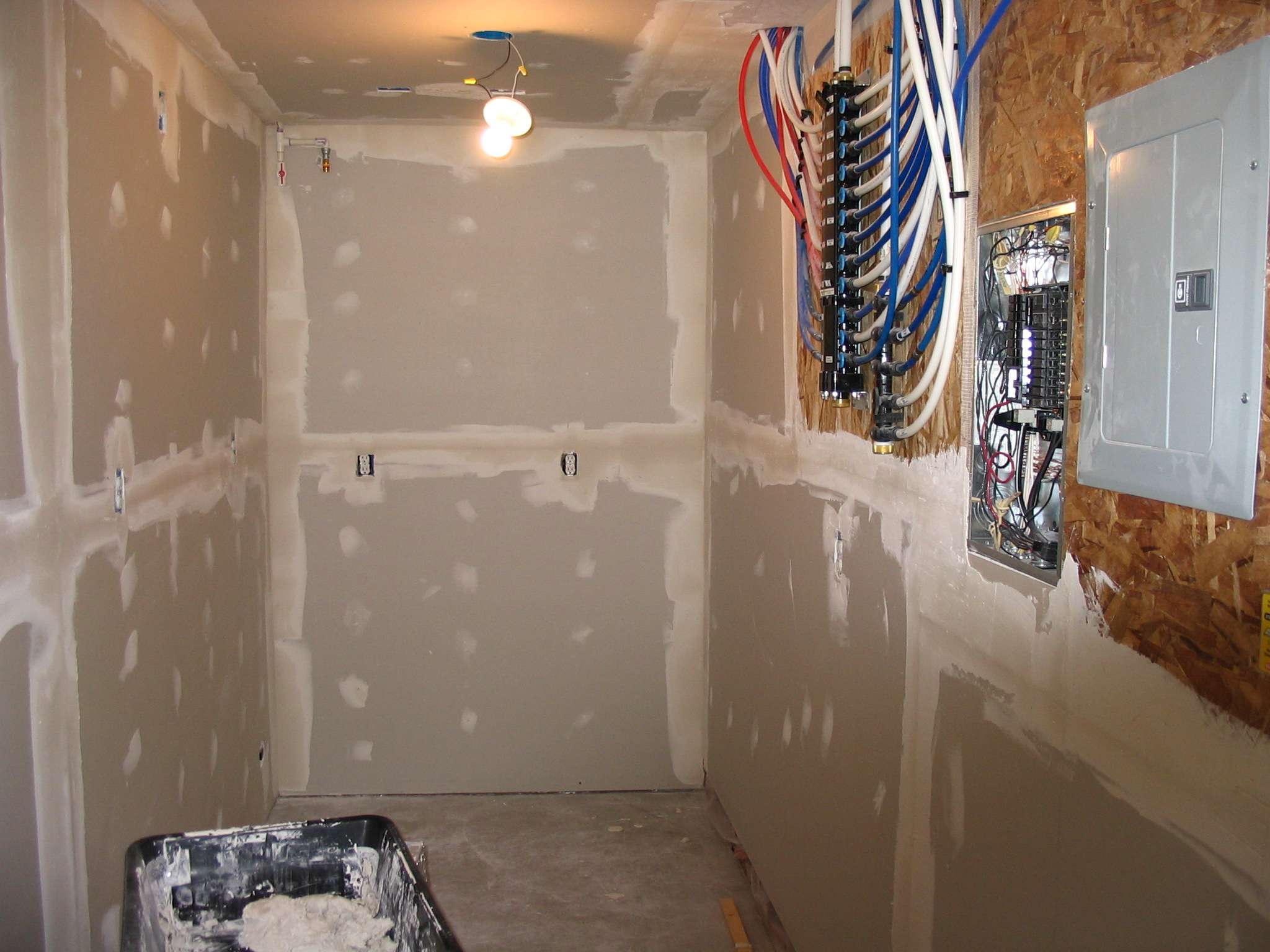

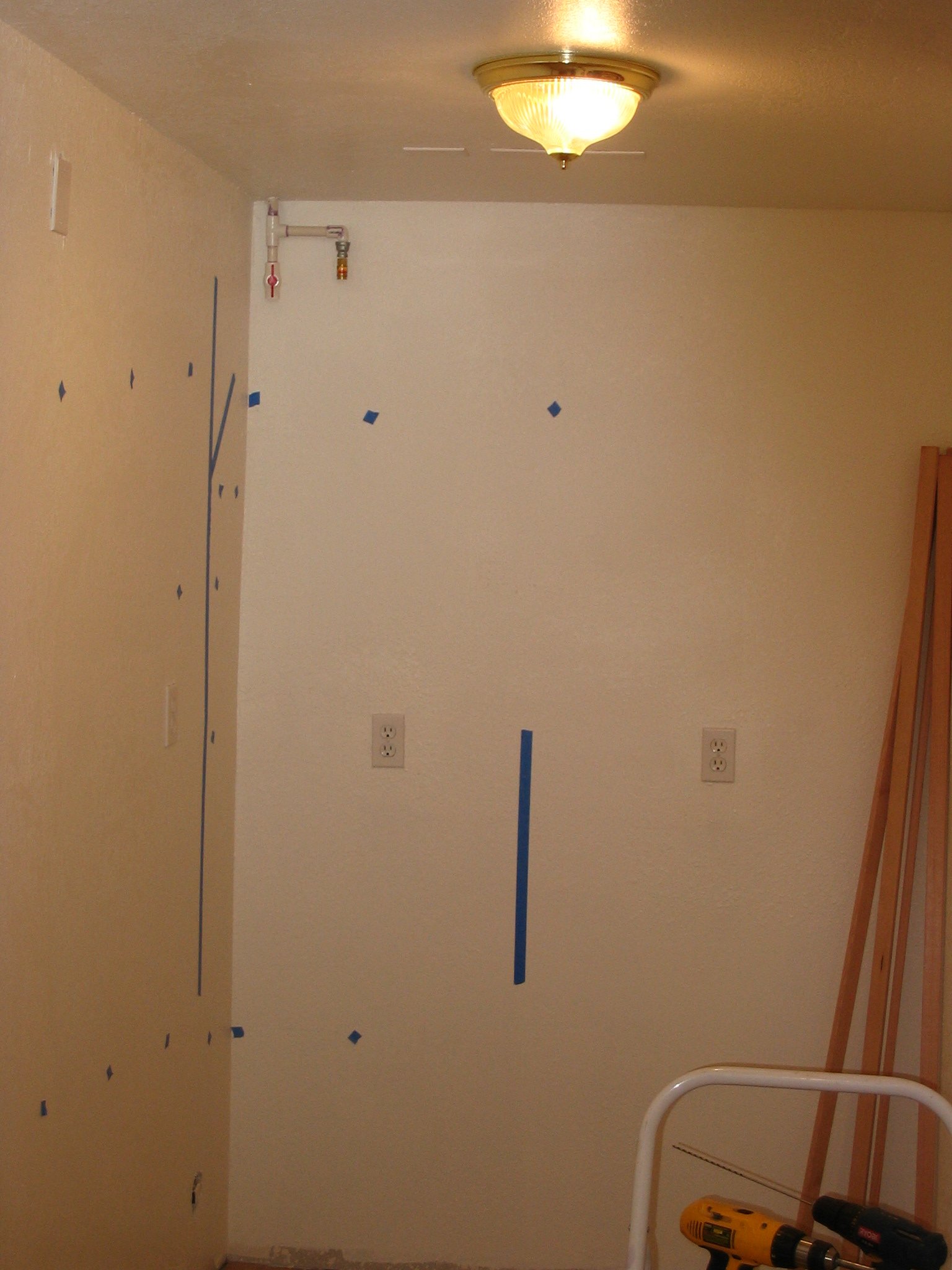

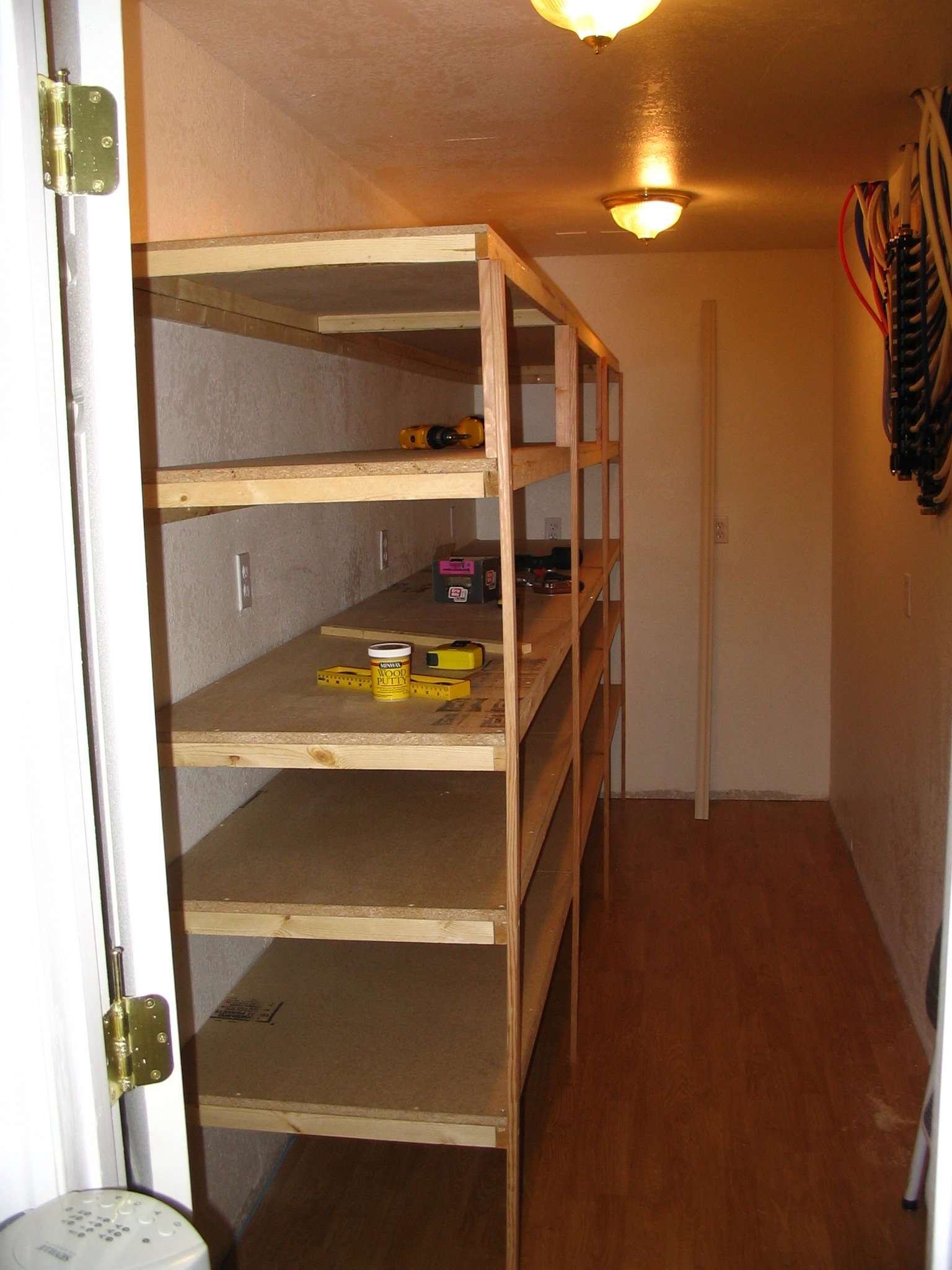

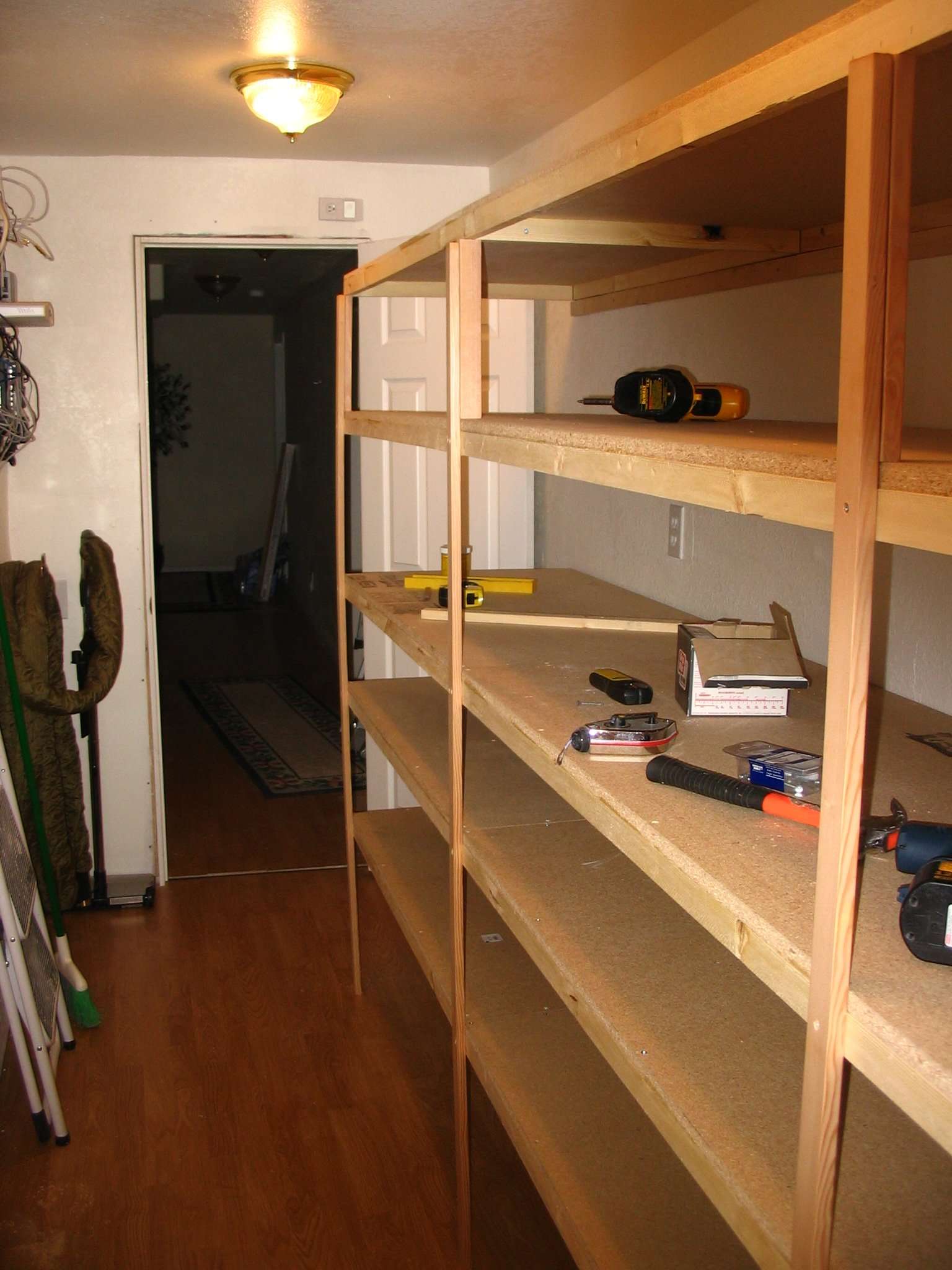

We do the walls and install the shelves and other equipment:
|
| |
|
|
|
|
|
